Measurement Accuracy and Mechanical Challenges in Refrigeration and Hydraulic Systems

Modern refrigeration and hydraulic systems depend not only on core mechanical components but also on precise measurement tools and reliable pump structures. The refrigeration electronic scale plays a central role in refrigerant charging accuracy, while hydraulic gear pumps are widely used in fluid power transmission.

Refrigeration Electronic Scale

Basic Function and Working Principle

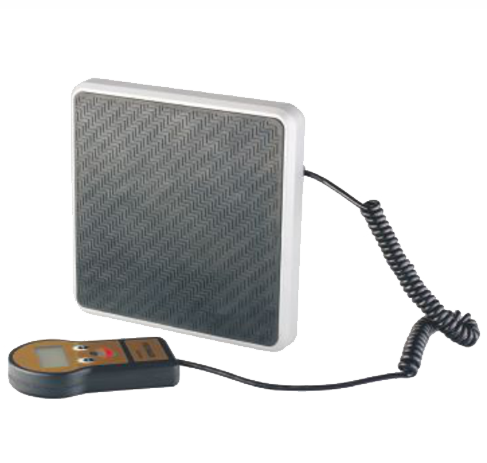

A refrigeration electronic scale is a precision weighing device designed specifically for charging and recovering refrigerants in HVAC and refrigeration systems. During installation or maintenance, accurate refrigerant quantity is critical to system efficiency, compressor protection, and regulatory compliance.

The working principle is based on load cell sensing technology. When a refrigerant cylinder is placed on the platform:

The load cell detects weight changes.

The signal is converted into an electrical output.

A digital display shows real-time weight measurements.

Technicians monitor the reduction in cylinder weight during refrigerant charging to ensure the correct mass is delivered to the system. Because refrigerant systems are typically charged by weight rather than volume, electronic scales provide a practical measurement method.

Key Features and Technical Characteristics

Refrigeration electronic scales are designed to operate in field service environments. Their common features include:

Digital LCD or LED display for real-time data

High measurement resolution, often within a few grams

Capacity suitable for standard refrigerant cylinders

Battery-powered operation for portability

Overload protection to prevent sensor damage

Some models also include:

Wireless connectivity for remote monitoring

Programmable charging targets

Automatic shutoff valves integrated with control modules

These features support technicians in maintaining consistent charging accuracy, especially when working with regulated refrigerants such as R410A, R32, or other low global warming potential (GWP) alternatives.

Application in HVAC Maintenance

The refrigeration electronic scale is widely used in:

Residential air conditioning installation

Commercial refrigeration servicing

Cold storage system maintenance

Refrigerant recovery operations

Accurate charging helps prevent undercharging or overcharging. Undercharged systems may experience insufficient cooling, while overcharged systems may increase compressor load and pressure. By providing measurable data, electronic scales reduce guesswork and support compliance with service guidelines.
